Product Overview
Product Overview

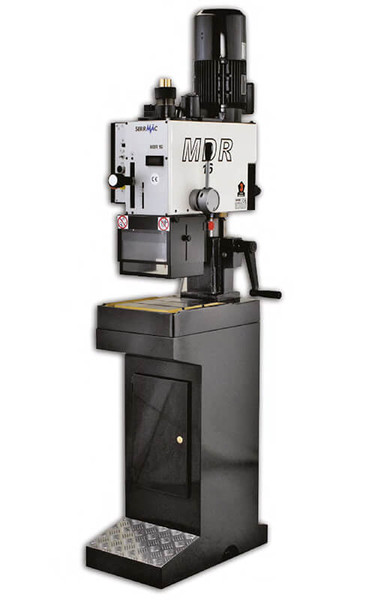

The OMMDR16 is an automatic chuck tapping machine, made in Italy by SerrMac International, a manufacturer with over 75 years of precision machine-tool experience since 1950. Sized for M16 threads, it brings the same fast, rigid, high-volume tapping as the rest of the MDR line to heavier fastener work.
The lead-screw chuck ("patrona") delivers true rigid tapping while a mechanical variator gives continuous speed adjustment for every tap size and material. Automatic tapping cycles run batch after batch with consistent thread quality and minimal operator attention.
Available in column or pedestal configuration and supplied with one chuck of your specification, the MDR16 is built for production shops that live on repetitive, precise tapping.
Key Features
- M16 rigid tapping capacity
- Lead-screw chuck ("patrona") for true rigid tapping
- Continuous mechanical variator speed control
- Automatic tapping cycles for high-volume production
- Column or pedestal base (specify at order)
- One chuck of your choice included
- CM2 spindle taper
- 24V LED work lighting · Made in Italy
Technical Specifications
- Model: MDR16
- Type: Automatic Chuck Tapping Machine
- Tapping Capacity: M16
- Spindle Taper: CM2
- Column Diameter: 3.86" (98mm)
- Spindle Travel: 2.36" (60mm)
- Transmission: Simple variator (VS), continuous speed
- Speed Range: 140–900 rpm
- Motor Power: 1.5 HP (1.1 kW)
- Power Supply: 400V 3-Phase 50Hz
- Weight: 331–463 lbs (150–210 kg)
Standard Equipment Included
- Lead-screw chuck for rigid tapping (one of your choice)
- Automatic tapping cycle control
- Mechanical variator drive
- 24V LED work lighting
- Operation manual and documentation
Available Options
- Tool cooling system + chip-collection tray
- Synchronized lubro-cooling nozzle
- Pneumatic rotary table for continuous-cycle work
- Digital piece counter
- Two-hand cycle start
- Lead-screw chuck with custom pitch, multi-spindle head (on request)
Warranty Information
Warranty Information
Machine Structure & Mechanical Components: 12-Month Limited Warranty
Spindle & Drive System: 12-Month Limited Warranty
Electrical & Control Components: 12-Month Limited Warranty
Wear Parts (bulbs, fuses, belts, consumables): Not covered
All warranty service is provided through Omni Machine Inc. with direct factory support from SerrMac International (Polcenigo, Italy). Warranty covers replacement or repair of any component found defective in material or workmanship within 12 months of delivery, labor excluded. Defects must be reported within 8 days of discovery. Warranty excludes normal wear, improper installation or use, unauthorized modification, and lack of routine maintenance. Technical support available by phone and email.
