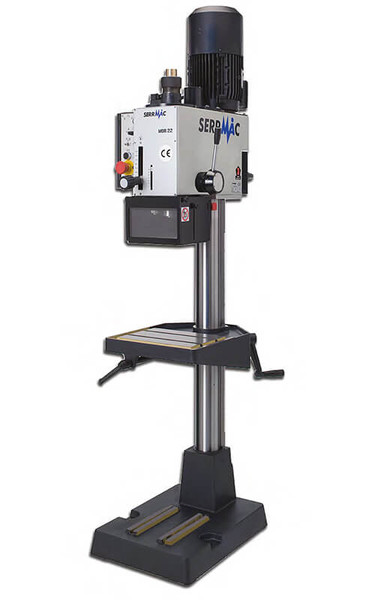

Brand New M12 SerrMac MDR12 Automatic Rigid Tapping Machine

Product Overview

The OMMDR12 is an automatic chuck tapping machine, made in Italy by SerrMac International, a manufacturer with over 75 years of precision machine-tool experience since 1950. It's purpose-built for fast, repeatable, high-volume tapping — the kind of continuous production where a manual tapping head can't keep up.

The lead-screw chuck ("patrona") system delivers true rigid tapping, and a mechanical variator provides continuous, infinitely adjustable speed to dial in the right rate for every tap and material. Automatic tapping cycles keep the machine feeding batch after batch with consistent thread quality and minimal operator involvement.

Available in column or pedestal configuration — your choice at order — the MDR12 ships with one chuck of your specification. It's ideal for shops running large, repetitive batches that demand speed without sacrificing thread precision.

Key Features

• M12 rigid tapping capacity
• Lead-screw chuck ("patrona") for true rigid tapping
• Continuous mechanical variator speed control
• Automatic tapping cycles for high-volume production
• Column or pedestal base (specify at order)
• One chuck of your choice included
• CM2 spindle taper
• 24V LED work lighting · Made in Italy

Technical Specifications

• Model: MDR12
• Type: Automatic Chuck Tapping Machine
• Tapping Capacity: M12
• Spindle Taper: CM2
• Column Diameter: 3.86" (98mm)
• Spindle Travel: 2.36" (60mm)
• Transmission: Simple variator (VS), continuous speed
• Speed Range: 275–1,785 rpm
• Motor Power: 1.5 HP (1.1 kW)
• Power Supply: 400V 3-Phase 50Hz
• Weight: 309–441 lbs (140–200 kg)

Standard Equipment Included

• Lead-screw chuck for rigid tapping (one of your choice)
• Automatic tapping cycle control
• Mechanical variator drive
• 24V LED work lighting
• Operation manual and documentation

Available Options

• Tool cooling system + chip-collection tray
• Synchronized lubro-cooling nozzle
• Pneumatic rotary table for continuous-cycle work
• Digital piece counter
• Two-hand cycle start
• Lead-screw chuck with custom pitch, multi-spindle head (on request)

Warranty Information Machine Structure & Mechanical Components: 12-Month Limited Warranty Spindle & Drive System: 12-Month Limited Warranty Electrical & Control Components: 12-Month Limited Warranty Wear Parts (bulbs, fuses, belts, consumables): Not covered All warranty service is provided through Omni Machine Inc. with direct factory support from SerrMac International (Polcenigo, Italy). Warranty covers replacement or repair of any component found defective in material or workmanship within 12 months of delivery, labor excluded. Defects must be reported within 8 days of discovery. Warranty excludes normal wear, improper installation or use, unauthorized modification, and lack of routine maintenance. Technical support available by phone and email.
