Product Overview

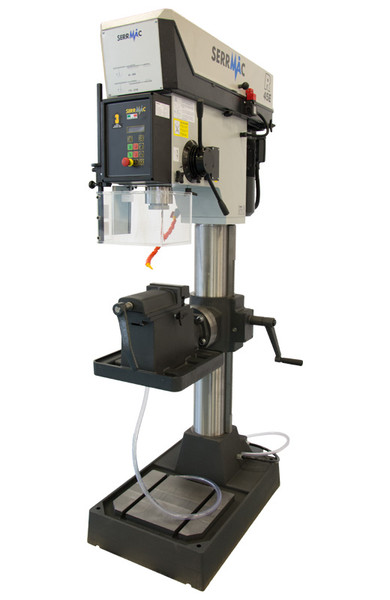

The OMR45 is a professional drill-milling machine, made in Italy by SerrMac International, a manufacturer with more than 75 years of expertise since 1950. Unlike a plain column drill that uses a cross table only for positioning, the R45 is a genuine drill-mill: the M60×2.5 screw-anchor spindle nose lets you combine precision drilling with light milling, giving one machine the flexibility of two.
A robust 6.46" (164mm) column and heavy build make the R45 a dependable workhorse for machine shops, fabricators, and production departments that need consistent performance across mixed work. With a choice of simple variable-speed (VS), gearbox-variator (VR), or electronic (E) drive, spindle speeds match the material and cutter every time.
Standard equipment includes a 2-speed motor, manual micrometric quill feed, automatic mechanical quill feed, and integrated tool cooling. The R45E adds thread-cutting and a digital spindle speed counter, and the machine is available factory-configured Flowdrill-ready for friction drilling applications.
Key Features
- True drill-mill — M60×2.5 spindle nose for drilling plus light milling
- 1.77" (Ø45mm) steel drilling capacity, M26 tapping
- Heavy 6.46" (164mm) column for rigidity
- CM4 spindle taper (ISO40 optional)
- Variable-speed (VS), gearbox-variator (VR), or electronic (E) drive
- 2-speed motor, membrane interface
- Manual micrometric + automatic mechanical quill feed
- Integrated tool cooling system
- Thread-cutting and digital speed counter (R45E)
- Flowdrill-ready configuration available
- 24V LED work lighting · Made in Italy
Technical Specifications
- Model: R45 / R45E
- Type: Drilling-Milling Machine
- Drilling Capacity (steel): 1.77" (Ø45mm)
- Tapping Capacity: M26
- Spindle Taper: CM4 (ISO40 optional)
- Column Diameter: 6.46" (164mm)
- Spindle Travel: 5.7" (145mm)
- Speed Range: 100–1,620 rpm (VS) / 40–2,340 rpm (VR) / 45–2,150 rpm (E)
- Motor Power: 3–4 HP (2.2–3 kW)
- Power Supply: 400V 3-Phase 50Hz (alternate-voltage electrical system optional)
- Tables: Tilting 23.6" × 13.6" (600 × 345mm) / Tilting+Vice 12.8" × 12.8" (325 × 325mm) / Cross 24.8" × 10" (630 × 255mm)
- Weight: 1,208 lbs (548 kg) tilting / 1,345 lbs (610 kg) cross table
Standard Equipment Included
- 2-speed motor
- Membrane control interface
- Manual micrometric quill feed (handwheel)
- Automatic mechanical quill feed
- Tool cooling system
- Thread-cutting (R45E)
- Digital spindle speed counter (R45E)
- 24V LED work lighting
- Operation manual and documentation
Available Options
- ISO40 spindle shaft with tie rod / pneumatic tool release
- Extended column (+200mm)
- Precision mechanical stop
- Increased spindle RPM
- Digital readout: Z-axis / X-Y / 3-axis with cycle programming
- Mechanical automatic X-axis feed and vertical rapid traverse (cross table)
- Chip-collection tray, alternate-voltage electrical system, multi-spindle head (on request)
