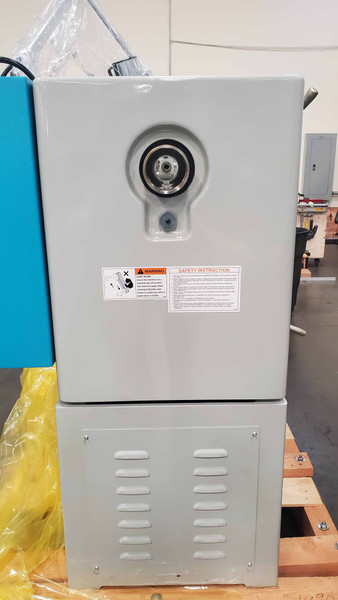

Introducing the premier 17"/24" x 60" Precision Gap Bed Engine Lathe from Omni Machine Inc. This robust Taiwanese-made lathe delivers exceptional performance and durability for demanding industrial applications. With a large 3-1/8" spindle bore and a wide range of advanced features, it's the perfect choice for precise machining operations.
This Precision Gap Bed Engine Lathe boasts a one-piece Meehanite cast iron base that reduces vibration and ensures long-lasting accuracy. The induction-hardened and precision-ground bed ways, combined with a removable gap bed, provide a smooth and stable platform for superior machining results. The universal gearbox accommodates a wide range of inch, metric, and modular threads without the need for change gears.
Features:
- Vibration-absorbent and deflection-free headstock housing
- Hardened and ground gears for durability
- Forged alloy steel spindle with three-point bearing support
- Anti-backlash cross-slide nut and safety clutch on feed shaft
- One-shot lubrication system for carriage and top slide
- Nylon safety gears and shear pin on leadscrew for added protection
- 12-speed spindle range from 26 to 1,500 RPM
Specifications:
Capacity:
- Swing Over Bed: 17"
- Swing Over Cross Slide: 10-5/8"
- Swing in Gap: 24-7/16"
- Distance Between Centers: 60"
- Center Height: 8-1/2"
- Bed Width: 12-1/2"
Headstock:
- Spindle Nose: D1-8
- Spindle Bore: 3-1/8"
- Taper of Spindle: MT No. 5
Carriage:
- Cross Slide Travel: 9.84"
- Compound Slide Travel: 5.9"
Threads & Feeds:
- Inch Threads: 2-72 TPI
- Metric Threads: 0.2-14 mm
- Longitudinal Feeds: 0.0015-0.04"/rev
- Cross Feeds: 0.00075-0.02"/rev
Tailstock:
- Quill Diameter: 2-3/16"
- Quill Travel: 5"
- Quill Taper: MT No. 4
Power:
- Spindle Drive Motor: 10 HP
- Voltage: 230V or 460V AC/3 PH
Equipped With:
- 10" 3-Jaw Chuck
- 12" 4-Jaw Chuck
- Full Length Splash Guard
- Steady Rest/Follow Rest
- Coolant System
- Foot Brake
- Work Lamp
- Gap Bed
- 4-Position Square Tool Post
- Toolbox with Tools
