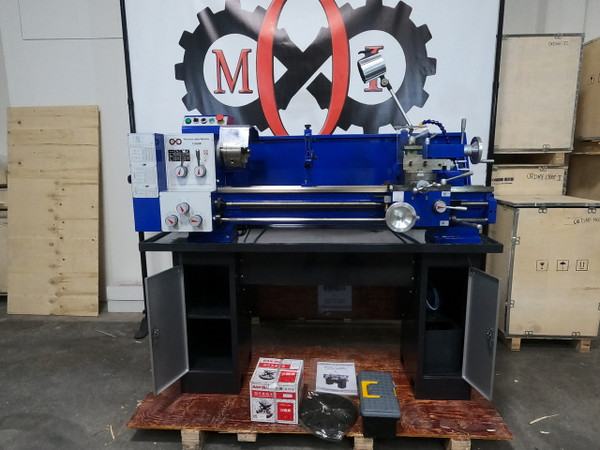

New 13" x 36" Omni Machine Gear Head Engine Lathe

Omni Machine

(No reviews yet) Write a Review
$6,450.00
SKU:
13360M
Condition:
New
Weight:
800.00 LBS

Expected arrival date is 28th Sep 2025

Product Overview

Introducing the Omni Machine 1330OM Metal Lathe, a gear head lathe designed for precision and durability. This robust bench lathe boasts a large spindle bore of 38mm (1-1/2"), ensuring optimal performance for your metalworking tasks. The gear drive provides reliable power, while the hard "V" ground bed with a soft wear strip on the carriage offers enhanced durability. The lathe is equipped to make precision cuts with both cross and longitudinal power feed.

This lathe's specifications are impressive, with a max swing over bed of 330mm, a max swing over cross slide of 160mm, and a distance between centers of 600/750mm. It features a range of longitudinal feeds from 0.1 to 1.5mm/r and a range of cross feeds from 0.045 to 0.6mm/r. The spindle speed can vary from 60 to 1800 rpm, giving you the flexibility to handle various operations. The machine also includes a tailstock taper of Mt 3 and a motor power of 1100W. The overall dimension of the lathe is 1230 x 530 x 540mm, and it weighs 320/360 kg net/gross.

Specifications:

  • Maximum Swing Over Bed:   13"
  • Maximum Swing over the Cross Slide:   8"
  • Distance Between Centers:   36"
  • Maximum Work Length:   35"
  • Bed Width:   6"
  • Spindle Bore:   1.5"
  • Spindle Taper:   MT#5
  • Spindle Speeds (12):   70; 110; 130; 190; 225; 395; 580; 690; 1025; 1200; 1800 rpm
  • Cross Slide Travel:   6"
  • Longitudinal Feeds:   0.0039`0.0549"/r
  • Cross Feeds:   0.001`0.01338"/r
  • Tailstock Quill Travel:   3.14"
  • Tailstock Quill Diameter:   1-37/64"
  • Taper of Tailstock:   MT#3
  • Lead Screw Type/ Diameter/ Pitch:   6"
  • Tool Size:   14 mm x 14 mm
  • Horsepower:  2 HP
  • Voltage:   110/220V~Single Phase~60 Hz
  • Dimensions (WxDxH):   66" x 30" x 54"
  • Weight:   800 Lbs.

Standard Equipment:

  • Steady & Follow Rest
  • Face Plate
  • 6" 3-Jaw Chuck
  • 6" 4-Jaw CHuck
  • Thread Dial
  • Deluxe Stand
  • Work Lamp
  • Coolant
  • Tool Box
  • 12 pc. Change Gears
  • MT#3 Dead Center



Warranty Information

One Year Manufacturers Parts Warranty
