Product Overview

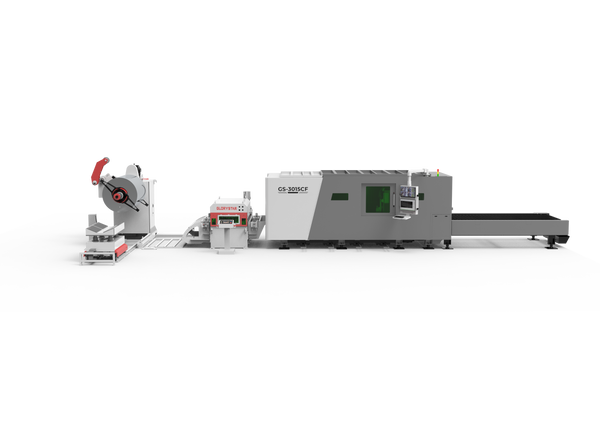

Introducing the GS-CF Series Enclosed Coil-Fed Fiber Laser Cutting Line from GloryStar, offered exclusively through Omni Machine Inc. — the enclosed version of the GS-F coil-fed line. Same integrated uncoil-level-cut workflow, but with a fully enclosed laser cutting section for Class 1 safety and fume containment.
Laser section: 170 m/min positioning, 2.0G acceleration. Same uncoiling specs as GS-F: 33,000 lb coil capacity, ±3mm/m² leveling, ±0.2mm feeding accuracy. Laser power 3kW to 6kW. Slightly larger footprint due to enclosure. Ships with transformer for U.S. 480V.
Product Features
The GS-CF series is the enclosed version of GloryStar's coil-fed fiber laser cutting production line, combining uncoiling, leveling, and enclosed laser cutting in one integrated system.
The enclosed laser cutting section provides Class 1 laser safety and improved fume containment. Same laser cutting performance as the GS-F Series. Same uncoiling and leveling section with identical specifications and components.
Slightly larger footprint due to the enclosure around the cutting section.
Feature Highlights:
- Fully enclosed laser cutting section — Class 1 laser safety, no external barriers needed
- Improved fume and dust containment at cutting station
- Same uncoiling/leveling capability and components as GS-F Series
- Same laser cutting performance (170 m/min, 2.0G) as GS-F
- INOVANCE/Yaskawa servo, Siemens/INOVANCE controls, Parker DC converter, Omron sensors
Key Features:
- Enclosed coil-fed laser cutting line
- Class 1 laser safety enclosure
- Same uncoiling capability as GS-F
- 170 m/min | 2.0G acceleration
- 3kW to 6kW laser
- 33,000 lb coil capacity
- Step-up transformer included
Technical Specifications:
Type: Enclosed Coil-Fed CNC Fiber Laser Cutting Line
Laser Positioning Speed: 170 m/min (6,693 IPM)
Laser Acceleration: 2.0G
X/Y Positioning Accuracy: ≤0.03mm/m
Z-Axis Travel: 3.15" (80mm)
Laser Source: IPG / GloryStar — 3kW or 6kW
CNC Control: FSCUT / GloryStar — 21" LCD
Max Coil Weight (1600mm): 33,000 lbs
Max Coil Weight (1300mm): 13,200 lbs
Coil Width: 8"–60"
Leveling Flatness: ±3mm/m²
Feeding Accuracy: ±0.2mm/m
Power Supply (U.S.): 480V, 3-Phase, 60Hz (Transformer Included)
Electrical Capacity: 27 kVA (3kW) | 42 kVA (6kW)
Specifications by Format Size:
| Specification | 3015 | 4015 | 4020 | 6015 |
| Cutting Area | 118"x59" (3000x1500mm) |
157"x59" (4000x1500mm) |
157"x79" (4000x2000mm) |
236"x59" (6000x1500mm) |
| Workbench Load | 397 lbs | 529 lbs | 694 lbs | 794 lbs |
| Floor Size (Laser) | 390"x110" | 492"x110" | 492"x134" | 689"x110" |
| Machine Dims (Laser) | 350"x91"x94" | 453"x91"x94" | 453"x114"x94" | 650"x91"x94" |
Product Configuration:
- LASER SECTION (ENCLOSED):
- Laser Source: 1 set — IPG / GloryStar
- Cutting Head: 1 set — BLT (BOCI) / GloryStar
- Control System: 1 set — FSCUT (Bochu) / GloryStar
- Full Enclosure: GloryStar
- Machine Bed: 1 set — GloryStar
- Racks: 3 sets — AIK or equivalent
- Guides: 3 sets — DTX or equivalent
- Reducers: 3 sets — TECHMECH / DESBOER or equivalent
- Motors: 4 sets — GloryStar Custom
- Ball Screw: 1 set — HIWIN
- Chiller: 1 set — GloryStar
- Slag Hopper: 1 set
- Dust Extraction: 1 set
- UNCOILING & LEVELING SECTION:
- Loading Cart 13T: 1 set
- Uncoiler with Gantry Support: 1 set
- Four-Roller Leveling and Feeding Machine: 1 set
- Feed Straightener: 1 set
- Hydraulic System: 1 set
- Pneumatic System: 1 set
- Servo Motors: INOVANCE / Yaskawa
- PLC/HMI: Siemens / INOVANCE
- DC Converter: Parker
- Sensors: Omron
Standard Equipment Included:
- Complete uncoiling and leveling system
- Fully enclosed laser cutting section
- IPG or GloryStar fiber laser source
- BLT or GloryStar cutting head
- FSCUT or GloryStar CNC with 21" LCD
- Precision racks, guides, reducers, ball screw
- Chiller, dust extraction, slag hopper
- Automatic grease lubrication
- Step-up transformer
- Nesting software
- Standard tooling and documentation
Available Options:
- Laser power (3kW / 6kW)
- 1600mm or 1300mm line
- Extended software
- Extended warranty
- On-site installation and training
Operating Environment:
- Ambient Temperature: 50°F – 104°F (10°C – 40°C) — If ambient temperature exceeds 104°F, contact GloryStar for special configuration
- Ambient Humidity: Below 85% (no condensation allowed)
- Environmental Vibration: Acceleration below 4.9 m/s²
- Power Supply Voltage: AC 380V ±5% (Native) — U.S. installations use step-up transformer from 480V 3-Phase 60Hz
- Power Supply Frequency: 50/60Hz ±1Hz
- Power Interruption Time: Less than 8ms
Installation & Commissioning:
GloryStar provides a complete Equipment Installation Guide prior to delivery based on the buyer's site conditions, specifying equipment orientation, power cable layout, and foundation layout diagram.
Prior to the agreed delivery date, the buyer must complete foundation construction, electrical conduit layout, and all preparatory work per the Installation Guide, ensuring all site conditions meet equipment installation requirements.
Upon arrival, the buyer and GloryStar's service engineer jointly inspect the equipment for appearance damage, impact, dents, or water exposure. Any transportation abnormalities must be documented with photos or video and reported immediately to GloryStar.
If no abnormalities are found, the buyer carries out unloading, hoisting, unpacking, and positioning per the Installation Guide. GloryStar's service engineer provides on-site guidance. All lifting and positioning must comply with standard safety procedures — improper or reckless operations are strictly prohibited.
After positioning, GloryStar's service engineer performs installation and commissioning per standardized procedures. The process is photographed and archived in GloryStar's customer service records.
Note: The buyer must assign personnel to be present during the entire installation and commissioning process to ensure proper understanding and familiarity with the equipment.
Warranty Period & Scope:
Warranty Period: 12 months from the date the equipment is installed, commissioned, and accepted.
During the warranty period, GloryStar will provide timely maintenance service and spare parts necessary for maintenance free of charge. Excludes protective lenses, nozzles, filters, and other wear/consumable spare parts.
Not Covered Under Warranty:
- Failures or damages caused by improper operation or violation of operating procedures
- Unauthorized modifications or disassembly by the buyer
- Use of substandard gas (including incorrect pressure or purity)
- Force majeure events (earthquakes, floods, etc.)
After-Sales Service Commitment:
- Remote support response within 2 hours (phone or remote assistance)
- On-site service response within 24 hours (regions with GloryStar service centers)
- On-site service response within 48 hours (regions without service centers)
- Lifetime free technical support and remote software upgrades
All warranty service coordinated through Omni Machine Inc. with direct support from GloryStar.
Documentation and Accessories Included:
Technical Documents:
- Operating instructions (1 copy)
- Electrical wiring diagrams and schematic diagrams (1 copy)
- Specialized laser-cutting nesting software (1 set — system version dependent)
- Product certificate of conformity (1 copy)
- Packing list (1 copy)
Tools:
- Standard tool set (allen wrench, etc.) — 1 set
- Lens cleaning paper, box, dust-free — 1 set
- Anhydrous ethanol, bottled, 95% purity — 1 bottle
Accessories:
- Nozzles, common specifications — 10
- Protective lenses (laser head dependent) — 5
- Ceramic ring (laser head dependent) — 1
339 Quality Inspection Standards:
Every GloryStar machine undergoes 339 quality inspection checkpoints using precision measurement equipment including:
- Ensemble-level testing of running rail flatness accuracy — Micrometer
- Rack and pinion parallelism to guideway testing — Micrometer
- Small mechanical parts accuracy testing — Japan-made Keyence ultra-fine microscope
- Machining accuracy verification to machine standard — Caliper
- Supervision and inspection of small mechanical parts — Gradienter
- Running guide rail straightness verification — Optical collimator
- Axis accuracy correction — UK Renishaw laser interferometer
- Leveling verification — Precision level
Why the GS-CF Over the GS-F?
- Full enclosure meets Class 1 safety — no barriers needed
- Better fume containment at cutting station
- Same uncoiling performance as open GS-F
- Required for strict environmental or safety compliance
