Product Overview

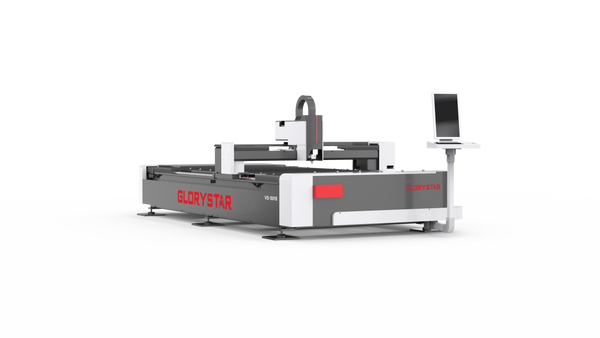

Introducing the VS Series Single Table Fiber Laser Cutting Machine from GloryStar, offered exclusively through Omni Machine Inc. — a versatile, cost-effective laser cutter built for job shops, fabricators, and growing operations making the jump to fiber laser. Six format sizes from 3015 to 6025. Laser power from 3kW to 12kW.
High-strength cage-structure welded bed with dual bus motor crossbeam. Same GloryStar heat treatment and 5-axis machining. 150 m/min positioning, 1.5G acceleration. 21" LCD runs the FSCUT CNC system. Ships with transformer for U.S. 480V 3-phase 60Hz.
Product Features
The VS series is a precision CNC fiber laser cutting machine integrating a fully intelligent control system, laser control technology, and precision machinery.
The main body adopts a high-strength cage-structure welded bed with high rigidity and stability, resistant to bending, earthquake, torsion, and deformation, ensuring machining accuracy under continuous cutting. Bending stiffness increased by more than 50% for stable processing of medium and heavy plates.
The crossbeam is a high-rigidity design equipped with dual bus motors — reasonable design, extremely strong overall rigidity, strong deformation resistance, excellent seismic resistance, and better dynamic performance.
Bed and crossbeam are rough machined on a large pentahedral gantry machining center, vibration aged, then precision machined as a whole. Transmission includes ultra-high rigidity reducers, anti-twist linear guides, and fully automatic grease lubrication.
Can be transported in a 20GP container (3015) or 40HQ container (3015, 4015, 6015).
Feature Highlights:
- High-precision, high-stability cage-structure welded bed — 50%+ bending stiffness, resists bending, torsion, and deformation
- Dual bus motor + high-rigidity crossbeam — exceptional rigidity, deformation resistance, and dynamic performance
- Fully automatic grease lubrication — 16 points (5 X, 6 Y, 5 Z), maintenance-free, 3x component lifespan
- MCA electrical cabinet climate control (optional) — automatic cooling/heating, separate air circulation
- Compact packaging — fits 20GP container (3015) or 40HQ container (3015, 4015, 6015)
Key Features:
- Single table — compact footprint
- High-strength cage-structure welded bed
- Dual bus motor crossbeam
- IPG or GloryStar fiber laser — 3kW to 12kW
- FSCUT or GloryStar CNC with 21" LCD
- 150 m/min positioning | 1.5G acceleration
- Six formats: 3015, 4015, 4020, 6015, 6020, 6025
- Automatic grease lubrication
- Step-up transformer included
Technical Specifications:
Type: CNC Fiber Laser, Single Table
Z-Axis Travel: 3.15" (80mm)
X/Y Positioning Accuracy: ≤0.03mm/m
X/Y Repeatability: ±0.02mm
Max Positioning Speed: 150 m/min (5,906 IPM)
Max Acceleration: 1.5G
Laser Source: IPG / GloryStar — 3kW, 6kW, or 12kW
CNC Control: FSCUT / GloryStar — 21" LCD
Power Supply (U.S.): 480V, 3-Phase, 60Hz (Transformer Included)
Electrical Capacity: 27 kVA (3kW) | 42 kVA (6kW) | 100 kVA (12kW)
Protection Level: IP51
Specifications by Format Size:
| Specification | 3015 | 4015 | 4020 | 6015 | 6020 | 6025 |
| Working Area | 120" x 60" (3048x1524mm) |
160" x 60" (4064x1524mm) |
160" x 80" (4064x2032mm) |
240" x 60" (6096x1524mm) |
240" x 80" (6096x2030mm) |
240" x 100" (6096x2530mm) |
| Table Load | 1.1 ton | 1.4 ton | 1.9 ton | 2.1 ton | 2.8 ton | 3.5 ton |
| Floor Size | 236"x118" | 280"x118" | 280"x138" | 362"x118" | 362"x138" | 362"x157" |
| Machine Dims | 197"x91"x71" | 240"x91"x71" | 240"x114"x71" | 323"x91"x71" | 323"x114"x71" | 323"x138"x71" |
Product Configuration:
- Laser Source: 1 set — IPG / GloryStar
- Cutting Head: 1 set — BLT (BOCI) / GloryStar
- Control System: 1 set — FSCUT (Bochu) / GloryStar
- Machine Bed: 1 set — GloryStar
- High-Precision Rack for X/Y Axis: 3 sets — AIK or equivalent
- Linear Guide Rails: 3 sets — DTX or equivalent
- Planetary Reducers: 3 sets — TECHMECH / DESBOER or equivalent
- Motors and Drives: 4 sets — GloryStar Custom
- Ball Screw: 1 set — HIWIN
- Flexible Cables and Drag Chains: 3 sets
- Proportional Valve: 1 set — GloryStar Custom / SMC (Japan) or equivalent
- Chiller: 1 set — GloryStar Standard Configuration
- Slag Hopper: 1 set — GloryStar
- Dust Extraction Fan: 1 set
Standard Equipment Included:
- IPG or GloryStar fiber laser source
- BLT (BOCI) or GloryStar cutting head
- FSCUT or GloryStar CNC with 21" LCD
- AIK racks, DTX guides, TECHMECH/DESBOER reducers, HIWIN ball screw
- GloryStar chiller
- Dust extraction with fan
- Slag hopper
- Automatic grease lubrication
- Step-up transformer
- Nesting software (base version)
- Standard nozzles (10), protective lenses (5), ceramic ring (1)
- Operating instructions, wiring diagrams, certificate of conformity
Available Options:
- Laser power (3kW / 6kW / 12kW)
- Enclosed housing upgrade
- Exchange table conversion
- Rotary axis
- Extended software
- Extended warranty
- On-site installation and training
Operating Environment:
- Ambient Temperature: 50°F – 104°F (10°C – 40°C) — If ambient temperature exceeds 104°F, contact GloryStar for special configuration
- Ambient Humidity: Below 85% (no condensation allowed)
- Environmental Vibration: Acceleration below 4.9 m/s²
- Power Supply Voltage: AC 380V ±5% (Native) — U.S. installations use step-up transformer from 480V 3-Phase 60Hz
- Power Supply Frequency: 50/60Hz ±1Hz
- Power Interruption Time: Less than 8ms
Installation & Commissioning:
GloryStar provides a complete Equipment Installation Guide prior to delivery based on the buyer's site conditions, specifying equipment orientation, power cable layout, and foundation layout diagram.
Prior to the agreed delivery date, the buyer must complete foundation construction, electrical conduit layout, and all preparatory work per the Installation Guide, ensuring all site conditions meet equipment installation requirements.
Upon arrival, the buyer and GloryStar's service engineer jointly inspect the equipment for appearance damage, impact, dents, or water exposure. Any transportation abnormalities must be documented with photos or video and reported immediately to GloryStar.
If no abnormalities are found, the buyer carries out unloading, hoisting, unpacking, and positioning per the Installation Guide. GloryStar's service engineer provides on-site guidance. All lifting and positioning must comply with standard safety procedures — improper or reckless operations are strictly prohibited.
After positioning, GloryStar's service engineer performs installation and commissioning per standardized procedures. The process is photographed and archived in GloryStar's customer service records.
Note: The buyer must assign personnel to be present during the entire installation and commissioning process to ensure proper understanding and familiarity with the equipment.
Warranty Period & Scope:
Warranty Period: 12 months from the date the equipment is installed, commissioned, and accepted.
During the warranty period, GloryStar will provide timely maintenance service and spare parts necessary for maintenance free of charge. Excludes protective lenses, nozzles, filters, and other wear/consumable spare parts.
Not Covered Under Warranty:
- Failures or damages caused by improper operation or violation of operating procedures
- Unauthorized modifications or disassembly by the buyer
- Use of substandard gas (including incorrect pressure or purity)
- Force majeure events (earthquakes, floods, etc.)
After-Sales Service Commitment:
- Remote support response within 2 hours (phone or remote assistance)
- On-site service response within 24 hours (regions with GloryStar service centers)
- On-site service response within 48 hours (regions without service centers)
- Lifetime free technical support and remote software upgrades
All warranty service coordinated through Omni Machine Inc. with direct support from GloryStar.
Documentation and Accessories Included:
Technical Documents:
- Operating instructions (1 copy)
- Electrical wiring diagrams and schematic diagrams (1 copy)
- Specialized laser-cutting nesting software (1 set — system version dependent)
- Product certificate of conformity (1 copy)
- Packing list (1 copy)
Tools:
- Standard tool set (allen wrench, etc.) — 1 set
- Lens cleaning paper, box, dust-free — 1 set
- Anhydrous ethanol, bottled, 95% purity — 1 bottle
Accessories:
- Nozzles, common specifications — 10
- Protective lenses (laser head dependent) — 5
- Ceramic ring (laser head dependent) — 1
339 Quality Inspection Standards:
Every GloryStar machine undergoes 339 quality inspection checkpoints using precision measurement equipment including:
- Ensemble-level testing of running rail flatness accuracy — Micrometer
- Rack and pinion parallelism to guideway testing — Micrometer
- Small mechanical parts accuracy testing — Japan-made Keyence ultra-fine microscope
- Machining accuracy verification to machine standard — Caliper
- Supervision and inspection of small mechanical parts — Gradienter
- Running guide rail straightness verification — Optical collimator
- Axis accuracy correction — UK Renishaw laser interferometer
- Leveling verification — Precision level
Why the VS Series?
- Lowest entry point into GloryStar fiber laser cutting
- Compact footprint fits shops that can't accommodate exchange tables
- Six format sizes from 5x10 to 10x20
- Same core GloryStar build quality as premium machines
- Ideal first laser for shops transitioning from plasma or outsourced cutting
