Product Overview

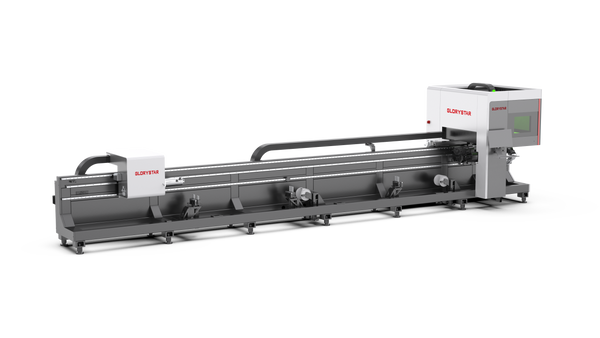

Introducing the G-A Series Fiber Laser Tube Cutting Machine from GloryStar, offered exclusively through Omni Machine Inc. — a high-speed tube processing solution built for production shops cutting small-diameter round and square tubing. Available with 3 kW or 6 kW fiber laser power, the G-A is engineered around a dual-chuck design with a movable front chuck that cuts between both chucks to achieve short tail material — reducing scrap and maximizing material yield on every stick of tube you feed it. With positioning speeds up to 328 ft/min (100 m/min) and acceleration up to 1.5G, the G-A Series keeps cycle times short and throughput high.
Available in two configurations — the G12A handles round and square tube up to 4.7” (120mm), while the G16A steps up to 6.3” (160mm) — giving you the flexibility to match the machine to your shop’s tube size mix. Laser source options include Max, Raycus, or GloryStar-branded fiber lasers. Optional bundle or conveyor loading systems reduce manual handling and keep the machine running with minimal operator intervention.
GloryStar’s own servo motors, speed reducers, chucks, and cutting head are standard across the platform. The CNC system (Bochu/GloryStar) handles nesting, tube optimization, and all cut path programming through an intuitive interface. A semi-automatic loader is standard; full bundle loading and unloading are available as options. Channel, angle iron, and I-beam cutting capability can be added for shops that process open structural profiles.
Key Features:
- 3 kW or 6 kW fiber laser power options
- Dual-chuck short tail cutting — movable front chuck and cutting head operate between chucks
- Positioning speed up to 328 ft/min (100 m/min) — G12A accelerates at 1.5G, G16A at 1.2G
- Round and square tube capacity: 3/8”–4.7” (G12A) or 3/8”–6.3” (G16A)
- Automatic loading length up to 21’-4” (6500mm); manual loading up to 23’-7” (7200mm)
- Repeat positioning accuracy ≤0.001” (0.03mm); position accuracy ≤0.002” (0.05mm)
- Max single pipe weight: 265 lbs (G12A) / 353 lbs (G16A)
- Bochu/GloryStar CNC control system
- Semi-automatic loading standard; bundle loading/unloading optional
- Optional channel, angle iron, and I-beam cutting
- Chiller and slag hopper included; dust extraction optional
- Compact footprint: approx. 31’ × 6’-7” (9.5 × 2 meters)
Technical Specifications:
| Specification | Value |
|---|---|
| Model | G12A / G16A |
| Laser Power Options | 3 kW / 6 kW |
| Max Automatic Loading Length | ≤21’-4” (6500mm) |
| Max Manual Loading Length | ≤23’-7” (7200mm) |
| Round Tube Capacity (G12A) | 3/8”–4.7” (10–120mm) |
| Round Tube Capacity (G16A) | 3/8”–6.3” (10–160mm) |
| Square Tube Capacity (G12A) | 3/8”–4.7” (10–120mm) |
| Square Tube Capacity (G16A) | 3/8”–6.3” (10–160mm) |
| Max Positioning Speed | 328 ft/min (100 m/min) |
| Max Acceleration | 1.5G (G12A) / 1.2G (G16A) |
| Max Chuck Speed | 160 r/min (G12A) / 130 r/min (G16A) |
| Repeat Positioning Accuracy | ≤0.001” (0.03mm) |
| Position Accuracy | ≤0.002” (0.05mm) |
| Max Single Pipe Weight | 265 lbs / 120 kg (G12A) — 353 lbs / 160 kg (G16A) |
| Machine Footprint | Approx. 31’ × 6’-7” (9.5 × 2m) |
| Machine Weight | Approx. 6,614 lbs (3.0 t) |
| Power Supply (Native) | 380V AC, 50Hz |
| Power Supply (U.S. with Transformer) | 480V, 3-Phase, 60Hz |
Standard Equipment Included:
- GloryStar fiber laser source (Max/Raycus/GloryStar)
- GloryStar cutting head
- Bochu/GloryStar CNC control system
- GloryStar servo motors and speed reducers
- GloryStar chucks (2)
- High-speed flexible cable system
- Semi-automatic loading system
- Industrial water chiller
- Slag hopper device
- Operating instructions, electrical wiring diagrams, certificate of conformity, packing list
Available Options:
- Bundle loading system
- Bundle unloading system
- Channel, angle iron, and I-beam cutting package
- Dust extraction system
- Step-up transformer for U.S. power (480V 3-phase 60Hz)
Warranty Information:
- Machine Frame & Bed: 3-Year Limited Warranty
- Laser Source: 2-Year Limited Warranty
- CNC Control System: 2-Year Limited Warranty
- Servo Motors & Drives: 2-Year Limited Warranty
- Chuck Assembly: 1-Year Limited Warranty
- Electrical Components: 1-Year Limited Warranty
- Consumables & Wear Parts (lenses, nozzles, ceramic rings): Not covered
All warranty service provided through Omni Machine Inc. with direct support from GloryStar. Technical support available via phone, email, and remote diagnostics. On-site service available within the continental United States.
All specifications subject to change without notice. European-native electrical specifications (380V 3-phase 50Hz) require step-up transformer for U.S. operation (480V 3-phase 60Hz). Contact Omni Machine Inc. for current pricing, lead times, and configuration details.
